Domains

See also under "Cross Application" (link)

Specific information of domains in authorization organizer module.

The domains play an important role when deriving roles.
The domain is a part of the role naming (indicator), this part of a master role can be replaced by the indicator (key) of the domain and by that create new role.

View role domain relations.

This view can be found under Organize > Views > Role - domain relations

The view will give an overview of all master single role - domain relations and flag those wherefore the derived role already exist.

Creating role domain relations.

See navigation "add related data"

Warning:
The role domain relation is always made between a master single role and a domain relation (decomposition).

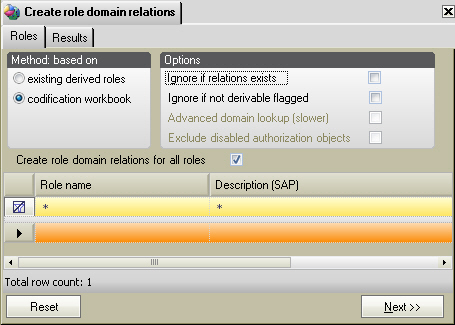

Mass change - create role domain relations.

You can create role domain relations based on the restrictions placed in the domain workbook codification.

Method:  based on existing derived roles The relations will be suggested based on existing derived roles. The application will check the domain of the derived roles and add it. based on codification workbook The relations will be suggested based on the role authorizations and the restrictions in the codification. Settings: Ignore if relations exist The role will not be processed if there are already domains assigned Override the non derivable flag If the role is flagged non derivable, the role still be processed (non derivable roles are not processed by default) Do an advanced domain lookup (slow) By default the application will add all domains wherefore a restriction exists, without looking if there is a value for. This option will look for values, but is much slower Exclude disabled authorization objects Will not do a lookup on the disabled authorizations of the role

Results tab.

The results tab gives an overview of all role domain relations (already existing + suggested):

Declarations of different flags:

Suggested by application:
The role domain relation is suggested by the application.

New:
The role domain relation is new and will be created when approving.

Delete:
The role domain relation exist but will be removed when approving.

Derived exists:
The derived role already exists for this role domain relation.

This document is up to date with version 11.1.10.20 of CSI Accelerator
